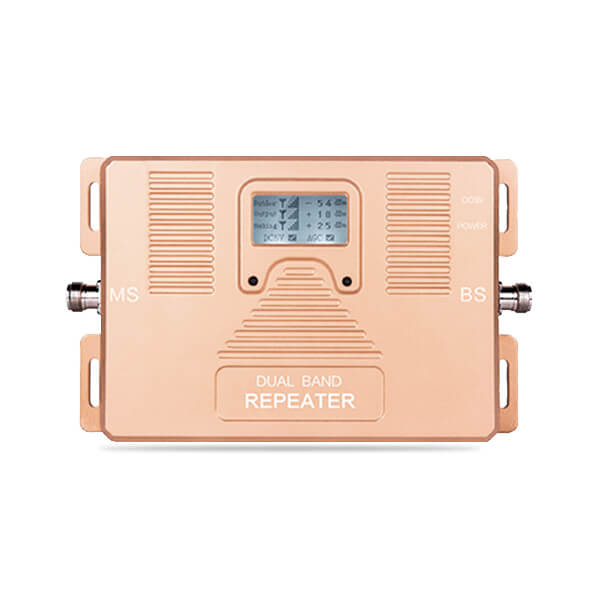

Dual Band Booster – Calls & 4G – 150 sqm

(Optus & Vodafone)

  • Application:

    2 Band
  • Coverage:

    Up to 150 sqm
  • Ideal For:

  • Provider:

  • Frequency:

    900/1800 MHz
  • Data:

    4G & Calls
Free Trackable Delivery In AU Delivery time: 5-7 Business Days

Benefits and Features:

  • Instant Signal Boost of up to 5 bars
  • CE & RoHS ISO Certified Product
  • Easy Installation
  • Instant Technical Assistance
  • 2 -Year Warranty

$ 505

Was $ 640. Save $ 135

Units Sold: 3340

Free Shipping

Overview

Kit includes:

  • 1x repeater
  • 1x indoor antenna
  • 1x outdoor Panel antenna
  • 1x power adapter
  • 1x 15 meters cable
  • 1x 5 meters cable
We provide 2 Years warranty on all our products
For better connection add LPDA antenna to your order.
Select Option
If our standard package cable lenght is not enought to cover your area you have an upgrade option.
Upgrade your booster kit with our internal antenna for optimal performance in larger spaces.
Price Match Guarantee

In our day and age, it’s vital to have a quality connection with the world. And if the outside signal is just not strong enough, it can be a cause of constant stress. Don’t subject yourself to that and check out this great device designed to enhance your mobile data signal in no time! The set-up takes only a few easy steps and the result will be more than satisfying! You’ll find all of the necessary parts in the installation kit, along with the instructions. If you run into any trouble during or after the set-up, there’s a 24/7 customer support line at your service, where you can get professional answers to all of your questions. We value your right to the best service, so on top of the free delivery for any product you purchase, we offer you a 2-year warranty and a 30-day money-back guarantee.

  • Technical Sheet
  • Coverage
    Up to 150 sqm
  • Use
    Small Boat
    Apartment
    Small Office
  • Operator
    Optus (Calls & 4G)
    Vodafone (Calls & 4G)
    Telstra (4G )
  • Frequency
    900/1800 MHz
  • Number of simultaneous users
    25
  • Up-link
    890 ~ 915 MHz
    1710 ~ 1785 MHz
  • Down-link
    935 ~ 960 MHz
    1805 ~ 1880 MHz
  • Voltage
    AC90-264V,output DC 5V / 3A
  • Dimensions
    22.5*14*5 cm
  • Weight
    1.15 kg
  • Max Gain
    ≤70dB
  • Bandwidth
    25 MHz / 60MHz
  • Ripple in Band
    ≤8dB
  • Output Power
    23-27dBm
  • Noise Figure @ max. gain
    4.5db 8db
  • Return loss
    ≤-8 dB
  • Time Delay
    ≤0.5 μs
  • MTBF
    > 20000 hours
  • Power Supply
    AC:90~265V, 50/ 60Hz;DC:5V 2A
  • Power Consumption
    4W
  • Impedance
    50 Ω
  • RF Connector
    N -Female
  • Cooling
    Heat sink Convection cooling
  • Operating Temperature
    Operation: - 10°C ~+ 55°C / Storage: -20°C ~+60°C
  • Power
    • Red
      Normal
    • Off
      DC power problem
  • DL (Downlink)
    • White
      No signal received Solution: Adjust the outdoor installation to get the sound signal
    • Green
      Signal received ok but not perfect
    • Red
      Full signal received
