Signal Booster – 3G – 150 sqm (Power Line)

(All AU Operators)

  • Application:

    1 Band
  • Coverage:

    Up to 150 sqm
  • Ideal For:

  • Provider:

  • Frequency:

    2100MHz
  • Data:

    3G
Free Trackable Delivery In AU Delivery time: 5-7 Business Days

Benefits and Features:

  • Instant Signal Boost of up to 5 bars
  • CE & RoHS ISO Certified Product
  • Easy Installation
  • Instant Technical Assistance
  • 2 -Year Warranty

$ 430

Units Sold: 1720

Free Shipping

Overview

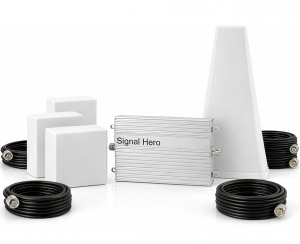

Kit includes:

  • 1x repeater
  • 1x indoor antenna
  • 1x outdoor LPDA antenna
  • 1x power adapter
  • 1x 15 meters cable
  • 1x 5 meters cable



We provide 2 Years warranty on all our products

If our standard package cable length is not enough to cover your area you have an upgrade option.
Upgrade your booster kit with our internal antenna for optimal performance in larger spaces.
Price Match Guarantee

If your home or place of business lacks quality mobile connection, it can reflect poorly on your clients and your prospects overall. This 3G signal booster will remedy the situation, propelling even a 1 bar signal to the max in seconds.   Don’t worry, the installation is hassle-free and everything you’ll need is included in the kit for your convenience. It is delivered free of charge, and you can set up the signal booster following our simple instructions in no time!  This device is emission-free, tested by professionals to guarantee its safety.This booster comes with a 2-year warranty, and if you purchased a model that wasn’t the right fit for you, it’s returnable within 30 days!

  • Technical Sheet
  • Coverage
    Up to 150 sqm
  • Use
    Apartment
    Small Office
    Small Boat
  • Operator
    Vodafone (3G)
    Optus (3G)
    Telstra (3G)
  • Frequency
    2100MHz
  • Number of simultaneous users
    50
  • Up-link
    1920 ~ 1980 MHz
  • Down-link
    2110 ~ 2170 MHz
  • Kit
    Repeater and all accessories
  • Voltage
    AC:90~265V, 50/ 60Hz;DC:5V 2A
  • Dimensions
    198*138*30 mm.
  • Weight
    1.1 kg
  • output
    Up link 24dBm Downlink: 27dBm
  • MGC ( Step Attenuation )
    ≥ 31dB / 1dB step
  • Gain Flatness
    GSM & CDMA Tpy≤ 6dB(P-P); DCS,PCS ≤ 8dB(P-P)
    WCDMA ≤ 2dB/ 3.84MHz,Full Band ≤ 5dB(P-P)
  • Noise Figure
    ≤ 5dB
  • Group Delay
    ≤ 2dB
  • Function
    a) Power supply LED denote b) Export power LED denote
  • Automatic Level Control
    50Ω/N connector
  • VSWR
    ≤2dB
  • Frequency Stability
    ≤0.01 ppm
  • Spurious Emission & Output inter-modulation
    GSM Meet ETSI TS 151 026 V 6.1.0
    WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
    CDMA Meet IS95 & CDMA2000
  • WCDMA System
    Spurious Emission Mask Meet 3GPP TS 25.143 ( V 6.2.0 )
    Modulation Accuracy ≤ 12.5%
    Peak Code Domain Error ≤ -35dB@Spreading Factor 256
  • CDMA System
    Rho ρ > 0.980
    ACPR Meet IS95 & CDMA2000
  • I /O Port
    N-Female
  • Impedance
    50 ohm
  • Operating Temperature
    -25ºC~+55ºC
  • Environment Conditions
    IP40
  • Dimensions
    155x112x85mm
  • Weight
    ≤ 1.50Kg
  • Power Supply
    Input AC90-264V,output DC 5V / 3A
  • Power LED
    Power Indicator
  • UL LED
    Be lighted when there is phone calling
  • DL 1
    Light is on when Outdoor signal is -65dB
  • DL 2
    Light is on when Outdoor signal only -55dB
  • DL 3
    Light is on when Outdoor signal only -50dB
