Ultimate Signal Amplifier for Cars

  • Application:

    2 Band
  • Provider:

  • Frequency:

    900/1800 MHz
  • Data:

    4G & Calls
Free Trackable Delivery In AU Delivery time: 5-7 Business Days

Benefits and Features:

  • Instant Signal Boost of up to 5 bars
  • CE & RoHS ISO Certified Product
  • Easy Installation
  • Instant Technical Assistance
  • 2 -Year Warranty

$ 670

Units Sold: 591

Free Shipping

Overview

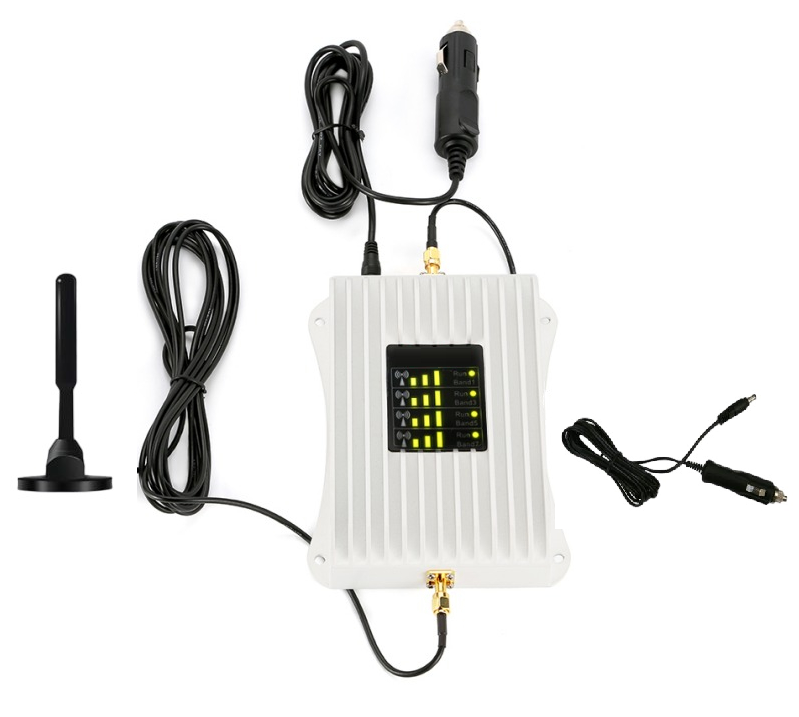

Kit includes:

  • 1x Magnetic Antenna
  • 1x Patch Antenna
Price Match Guarantee

This dual-band repeater supports 900/1800MHz frequencies and is capable of boosting voice and 4G signals from most Australian operators. In the kit you will find the magnetic outdoor antenna, that is placed on the roof of the vehicle, the booster unit and the inside car antenna. This car booster also comes with an installation manual for your convenience. In case you have any issues, before, during, or after the purchase and installation of this booster, contact us anytime, our 24/7 customer support team is only a click away. Plus, we offer free delivery across the Australia, a 30-day money-back guarantee and a 1-year warranty for your peace of mind.

  • Technical Sheet
  • Uplink
    890-915 MHz
    1710-1780 MHz
  • Downlink
    935-960 MHz
    1805-1880 MHz
  • Bandwidth
    25 MHz / 75 MHz
  • Max Gain
    ≥ 55dB
  • Frequency
    900/1800 MHz
  • Output Power
    ≥ 10dBm
  • ALC/AGC Range
    ≥ 20dB
  • Noise Figure @ Full Gain
    ≤ 6dB
  • In Band Ripple
    ≤ 5dB
  • Group Delay
    ≤ 5μs
  • VSWR
    ≤ 1.8dB
  • Spurious Emission
    9KHz ~1GHz ≤ -36dBm/100KHz
    1GHz ~12.5GHz ≤ -30dBm/1MHz
  • Inter-modulation
    ≤ -40dBc
  • Return loss
    ≤- 8 dB
  • Max. Input Power Without Damage
    0 dBm
  • Frequency Stability
    ≤0.01ppm
  • ACRR(WCDMA)
    ≥ 30dB @ ±5MHz & ±10MHz
  • Peak Code Domain Error (WCDMA)
    3GPP TS 25.106
  • Modulation Accuracy (WCDMA)
    3GPP TS 25.106
  • Spurious Emission Mask (WCDMA)
    3GPP TS 25.106
  • MTBF
    >50000 hours
  • System Impedance
    50Ω
  • Power Consumption
    ≤20W
  • AC Power Requirements
    100 ~ 240VAC / 45 ~ 65Hz
  • DC Power Adapter
    5VDC/6A,
  • Net Weight
    5.8kg
  • Dimensions
    350x230x50mm
  • Operating Temperature
    -10ºC ~ +55ºC
  • Environment Conditions
    IP40
  • Humidity
    < 90%
  • Cooling
    Heatsink Convection cooling
  • RF Connector Type
    N Type Female
  • Local Indication LED
    Power UL/P DL/P
