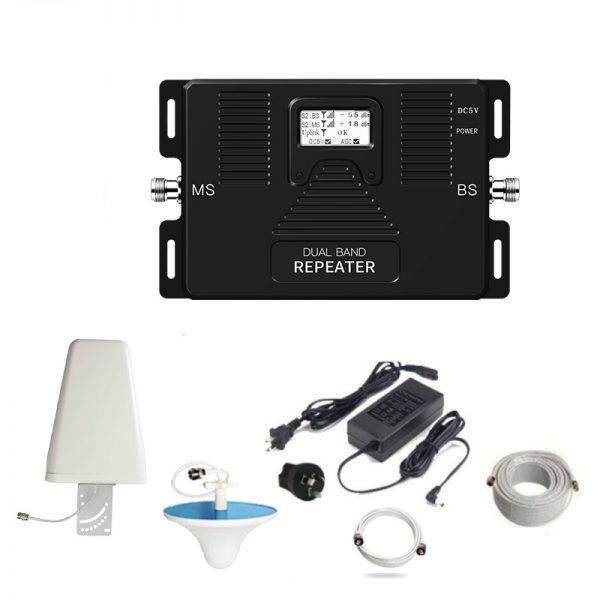

Dual Band Booster – Calls & 3G – 600 sqm (Power Line)
(Boosts GSM & 3G)
The strength of your mobile data signal is low and unpredictable? That’s surely a nerve-wracking way to run your home and business. What we offer you is a way to enhance this signal quickly and with a long-lasting effect. This booster is unbelievably simple to install and following a simple step-by-step manual, you can get the job done in no time and admire the result! Although, if you do feel lost at any moment before, during or after installation, please feel free to contact our 24/7 support line to get help. We value not only your connection quality but also your time and convenience. That’s why all of our products are delivered free of charge and are under warranty for 2 years. In case the device wasn’t a perfect fit, don’t worry! You can return it within 30 days for a full refund!
- Technical Sheet
-
Coverage up to 600 sqm -
Use Medium Home
Large Home
Large Office
Small Hotel -
Operator Optus (Calls & 3G)
Vodafone (Calls & 3G) -
Frequency 900/2100 MHz -
Number of simultaneous users 75 -
Up-link 890 ~ 915 MHz
1710 ~ 1785 MHz -
Down-link 935 ~ 960 MHz
1805~ 1880 MHz -
Voltage AC/220V±10% 45~55Hz -
Dimensions 27×28×6 cm -
Weight 3.5 kg
-
Output Up link :15dBm Downlink: 17dBm -
Port VSWR ≤1.8DB -
Noise figure ≤5dB -
Ambient temperature Operation: - 10°C ~+ 55°C / Storage: -20°C ~+60°C -
Function a) Power supply LED denote b) Export power LED denote
-
I/O impedance 50Ω/N connector
-
Transmission delay ≤0.5μs
-
Power -
Red Normal -
Off DC power problem
-
-
DL (Downlink) -
White No signal received Solution: Adjust the outdoor installation to get the sound signal -
Green Signal received ok but not perfect -
Red Full signal received
-
FAQ
-
Why a mobile signal booster is the best solution for poor reception?
A mobile signal booster is the only working solution if you have a weak signal and dead zones. It helps to improve signal strength so you can access the internet more quickly, and stream videos without buffering.
With our booster you can make and receive calls without interruption, ensuring you’re always in touch with your family and friends.
In general, the booster catches the signals from the nearest cell tower in the area by the external antenna which is included in the kit, then it sends the signal to the booster box. The box amplifies the signals, ensuring reliable coverage even in areas with poor signal strength, and the internal antenna spreads the signals inside the closed area. -
Please, help me to find the best booster. How do I know Which one?
If you want to find the best booster for you there are 2 easy options:
1. Use our Booster Finder Wizard to find the best booster based on your needs.
2. If you’re still having trouble finding the right booster after using the Wizard, contact our technical support team via chat or phone. They’ll be happy to assist you in finding the best solution. -
What make your boosters different?
1. At australiamobileboosters.com, we are committed to providing high-quality boosters at unbeatable prices.
2. Since 2010, we’ve been dedicated to improving cellular signals with our specialized boosters, putting our CUSTOMERS FIRST every step of the way.
3. Our boosters fix more than the signal. Our customers enjoy fewer dropped calls, better voice quality, faster internet speeds, and improved video streaming.
4. In addition, we provide peace of mind with our industry-leading 24/7 after-sale service:
– Lifetime Support
– 2-Year Warranty
– Installation Services (for enterprise solutions)
5. And if it’s not a perfect solution for you, we’ll refund your purchase or replace it. No hard feelings. -
Does this need installation? Can I set it up myself?
Installing our boosters is easy – in fact, 98% of our customers do it themselves. The device is plug-and-play, so all you need to do is attach the units with cables and mount the antennas. We provide simple installation guides and videos to help you along the way.
Moreover, we offer technical aftersales support after the delivery of your device, so you can have peace of mind knowing we’re here to help.
